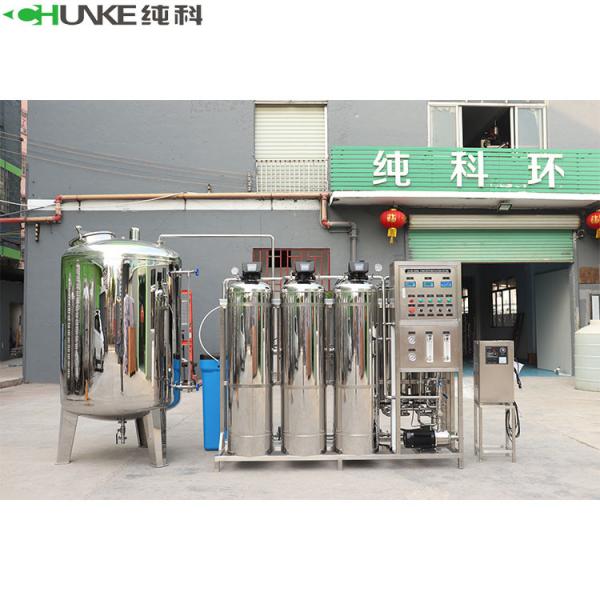

2TPH Two stage RO Water Treatment Equipment With SS304 tank
1000L/H Two-stage RO Configuration list
| Equipment name | 1000L/H two-stage RO |
| No. | Accessories name | Specification | Quantity | Unit | Brand |
| 1 | Original water tank 304 stainless steel / PE anti-corrosion | (Customer supply) | 1 | SET | |
| 2 | Original water pump | | 1 | SET | CNP |
| 3 | Mechanical filter | | 1 | SET | CHUNKE |
| 4 | Activated carbon filter | | 1 | SET | CHUNKE |
| 5 | Water softener | | 1 | SET | CHUNKE |
| 6 | PH adjustment dosing system | | 1 | SET | SEKO |
| 7 | 5μm security filter | | 1 | SET | CHUNKE |
| 8 | High pressure pump | | 1 | SET | CNP |
| 9 | Two-stage reverse osmosis pure water device Water production: 1.0m3/h, salt rejection: 97～99% | | 1 | SET | CHUNKE |
| 10 | RO water tank PE anti-corrosion | | 1 | SET | CHUNKE |
| 11 | EDI feed water pump | | 1 | SET | CNP |
| 12 | 0.22μm precision filter | | 1 | SET | CHUNKE |
| 13 | EDI deionization device, water production: 1.0m3/h, water quality: conductivity ≤0.2us/cm | | 1 | SET | CHUNKE |
| 14 | EDI ultra-pure water tank | PE anti-corrosion | 1 | SET | CHUNKE |
| 15 | Connecting pipe fittings (food grade UPVC pipe valve parts are used from the original water tank outlet to the terminal fine filter outlet, and 304 stainless steel outer polished pipe valve parts are used for the reverse osmosis high pressure part.) | | 1 | SET | CHINA |
| 16 | Electronic control system | | 1 | SET | CHUNKE |
| 17 | Pressure gauge | | 1 | SET | CHINA |
| 18 | Panel flowmeter (0-10GPM) | | 1 | SET | CHINA |
We pride ourselves on our reverse osmosis/water treatment systems. It’s these very systems that give us a reputation for quality and efficiency above all others in the industry. Reverse Osmosis (RO) technology, also known as hyper filtration, is used in our municipal, commercial, and industrial water treatment systems to purify water by removing salts, contaminants, heavy metals, and other impurities.
As the pinnacle of recovery rates, rejection, and energy efficiency, it is reverse osmosis systems that make the water treatment industry effective.
We have multiple pre-engineered models to choose from, as well as custom treatment systems from smaller containerized systems to full water treatment plants all to meet your specific water purification needs.
With stainless steel 304 tank
Reverse osmosis systems work by applying a high pressure pump to a concentrated solution of unfiltered water, which can be in the form of seawater, brackish, or tap water. The system forces the water through a semipermeable membrane, leaving virtually all of the dissolved salts and other substances behind. The type of water you’re looking to purify using reverse osmosis systems will determine which pump will be needed to use in order to see effective results. Seawater requires larger and higher pressure pumps compared to brackish or tap water since it has a higher content of total dissolved solids (TDS). Pretreatment is necessary when working with reverse osmosis systems to protect the membranes from fouling and failing prematurely. This degradation of the reverse osmosis membrane occurs due to a build up of foulants such as silica, iron, manganese, calcium carbonate, dead and living organisms, and magnesium carbonate.
|
|
2TPH Two stage RO Water Treatment Equipment With SS304 tank Images
|
